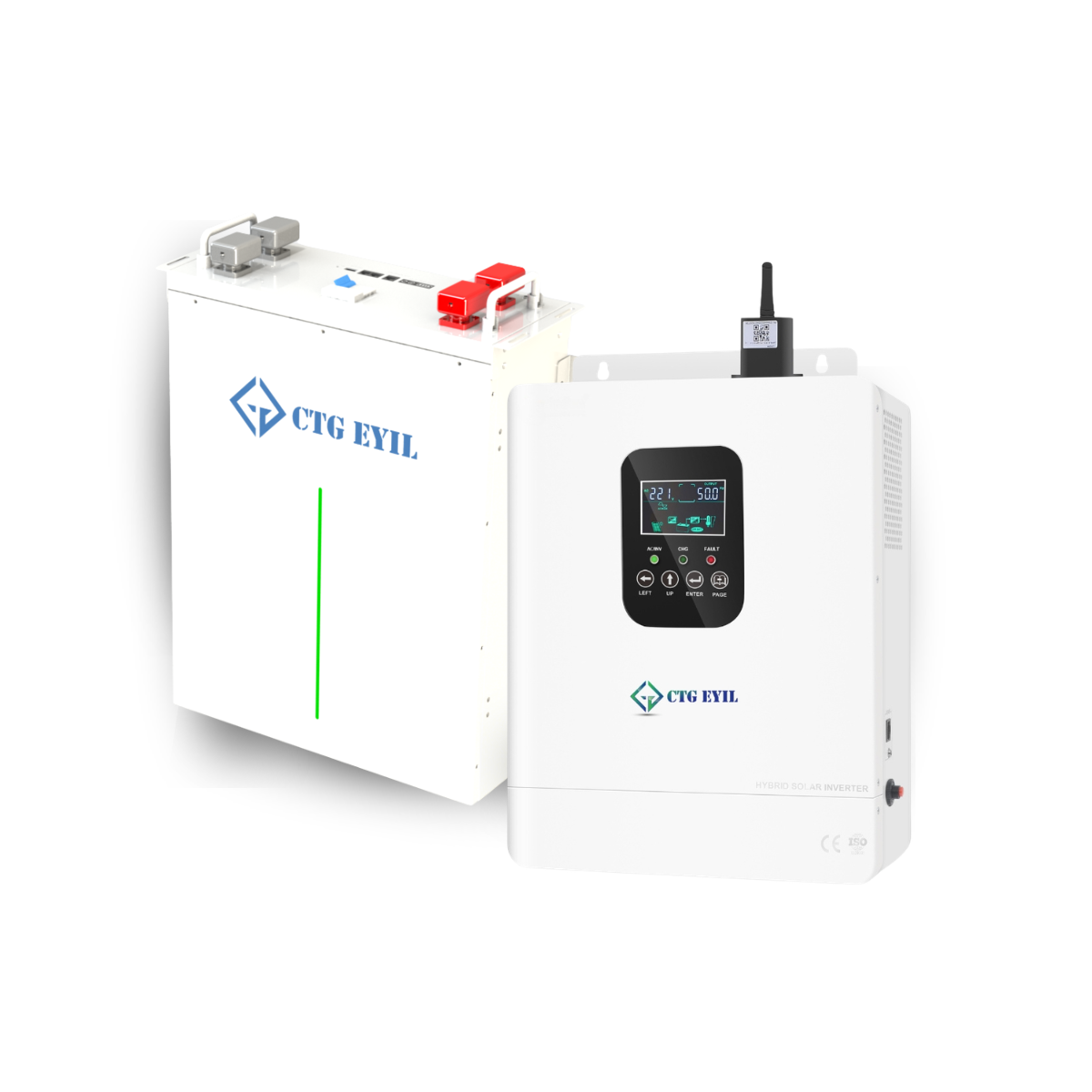

48V Combo - 48V 5kW Hybrid Inverter + 51.2V 100Ah Wall & Stack Mount Lithium Battery

Rs. 122,999.00
Rs. 122,999.00 Rs. 132,999.00
Sale Sold out

The CTG 48V Combo combines a high-performance 5kW Hybrid Inverter with a durable 51.2V 100Ah LiFePO₄ Battery, delivering powerful, efficient, and stable energy backup for homes, offices, and commercial setups. With ultra-high MPPT efficiency, smart BMS protection, modular battery design, and seamless solar-battery-grid switching, this combo ensures reliable power, long service life, and intelligent monitoring in any environment.

⭐ Key Features

🔌 5kW Hybrid Inverter

  • 5kW Pure Sine Wave Output for stable power
  • High-Efficiency MPPT ≥99.9%
  • Hybrid Operation: Solar + Battery + Grid
  • Smart Wi-Fi / Mobile App Monitoring
  • Built-in Multi-Protection System
  • User-friendly LCD Display

🔋 51.2V 100Ah LiFePO₄ Battery

  • High-Capacity 5.12kWh Energy Storage
  • Advanced Smart BMS for safety & performance
  • Long Life ≥4500 Cycles
  • Wall & Stack Mount Modular Design
  • Stable and efficient charge/discharge capability

Service

Life-time service support

Delivery

Safe & Secure Delivery.

View Product Details
Product Product subtotal Quantity Price Product subtotal
48V Combo - 48V 5kW Hybrid Inverter + 51.2V 100Ah Wall & Stack Mount Lithium Battery
48V Combo - 48V 5kW Hybrid Inverter + 51.2V 100Ah Wall & Stack Mount Lithium Battery
48V Combo - 48V 5kW Hybrid Inverter + 51.2V 100Ah Wall & Stack Mount Lithium Battery
Rs. 122,999.00/ea
Rs. 132,999.00
Rs. 0.00
Rs. 122,999.00/ea
Rs. 132,999.00
Rs. 0.00
  • Specifications
  • Features
  • Checkout & delivery
  • What is in the Box?

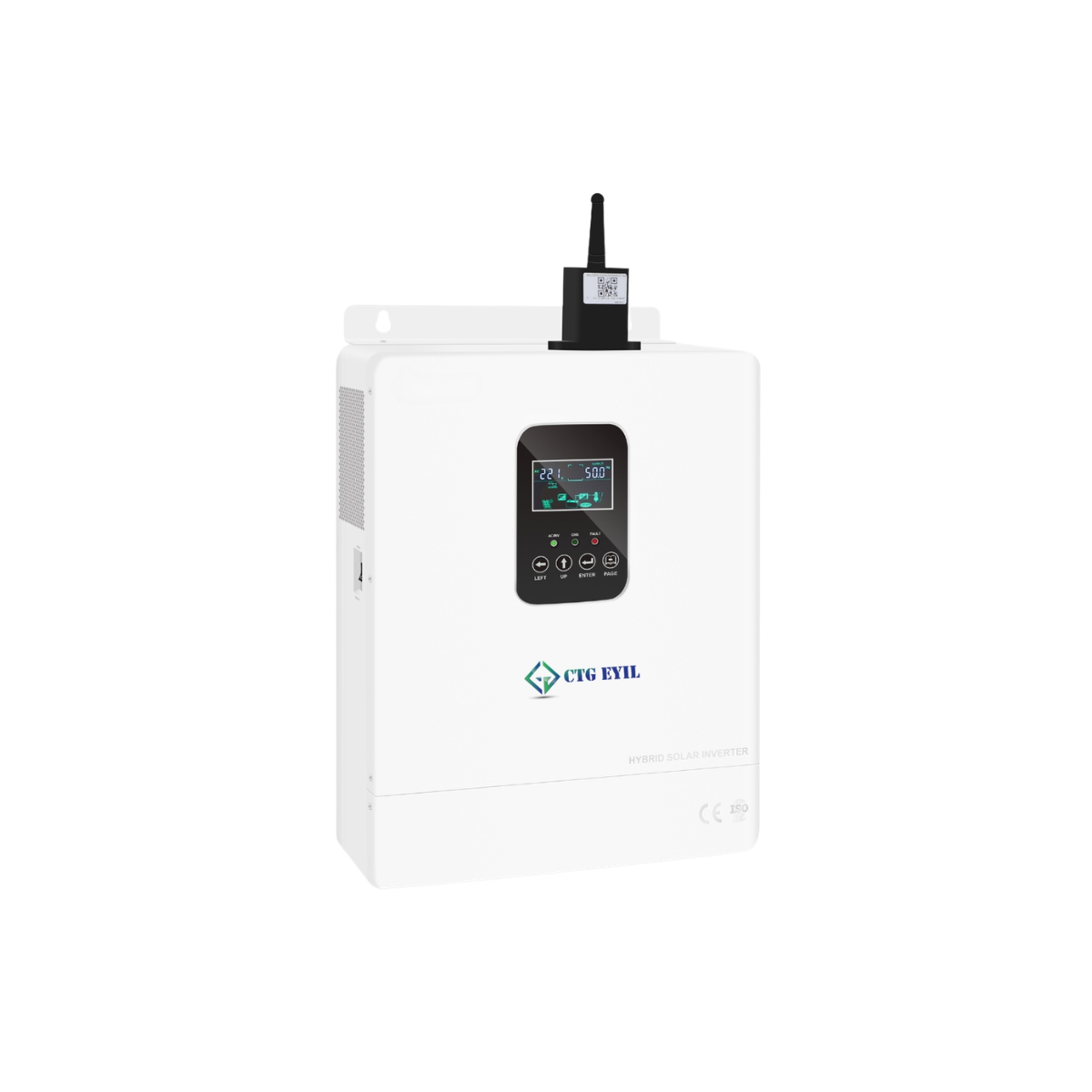

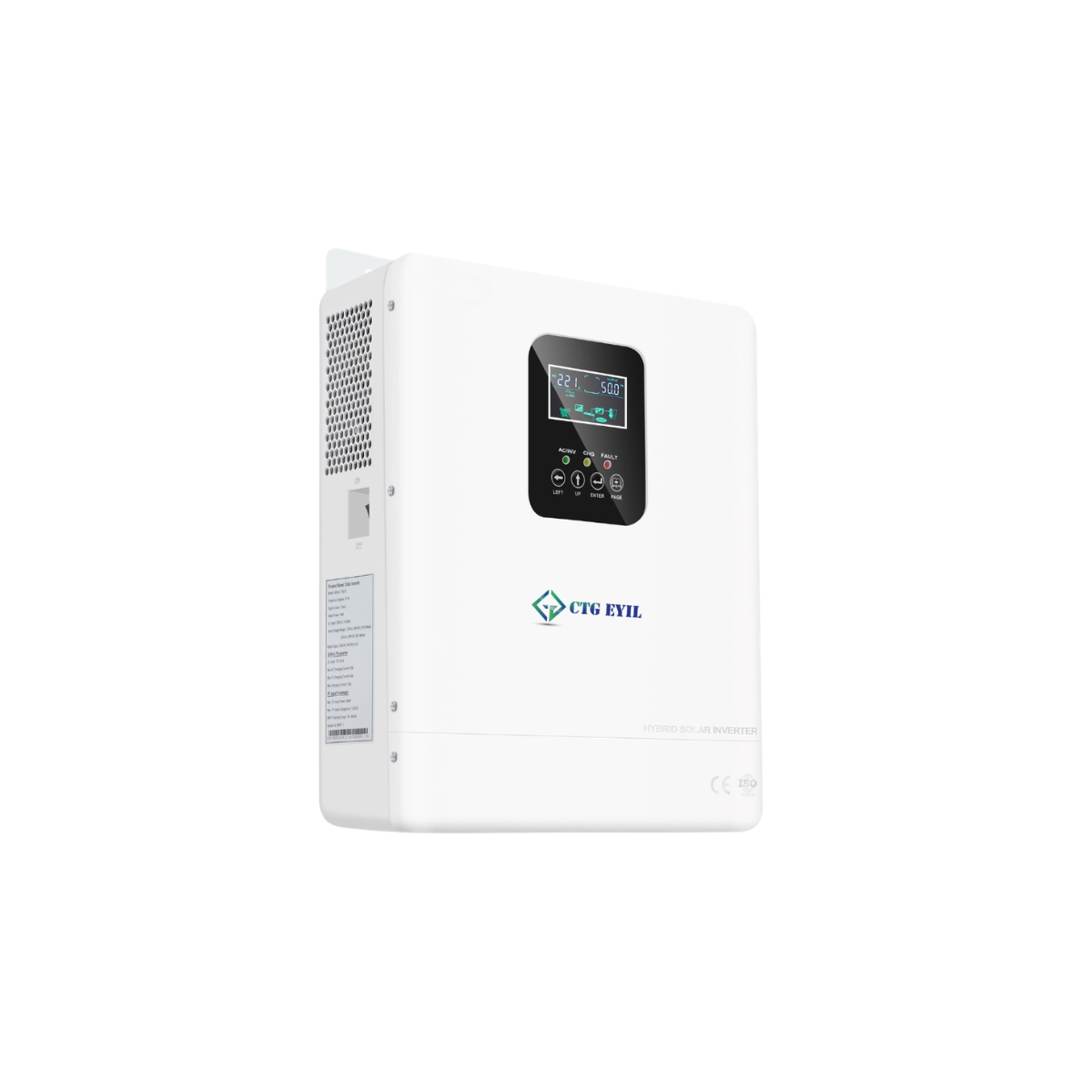

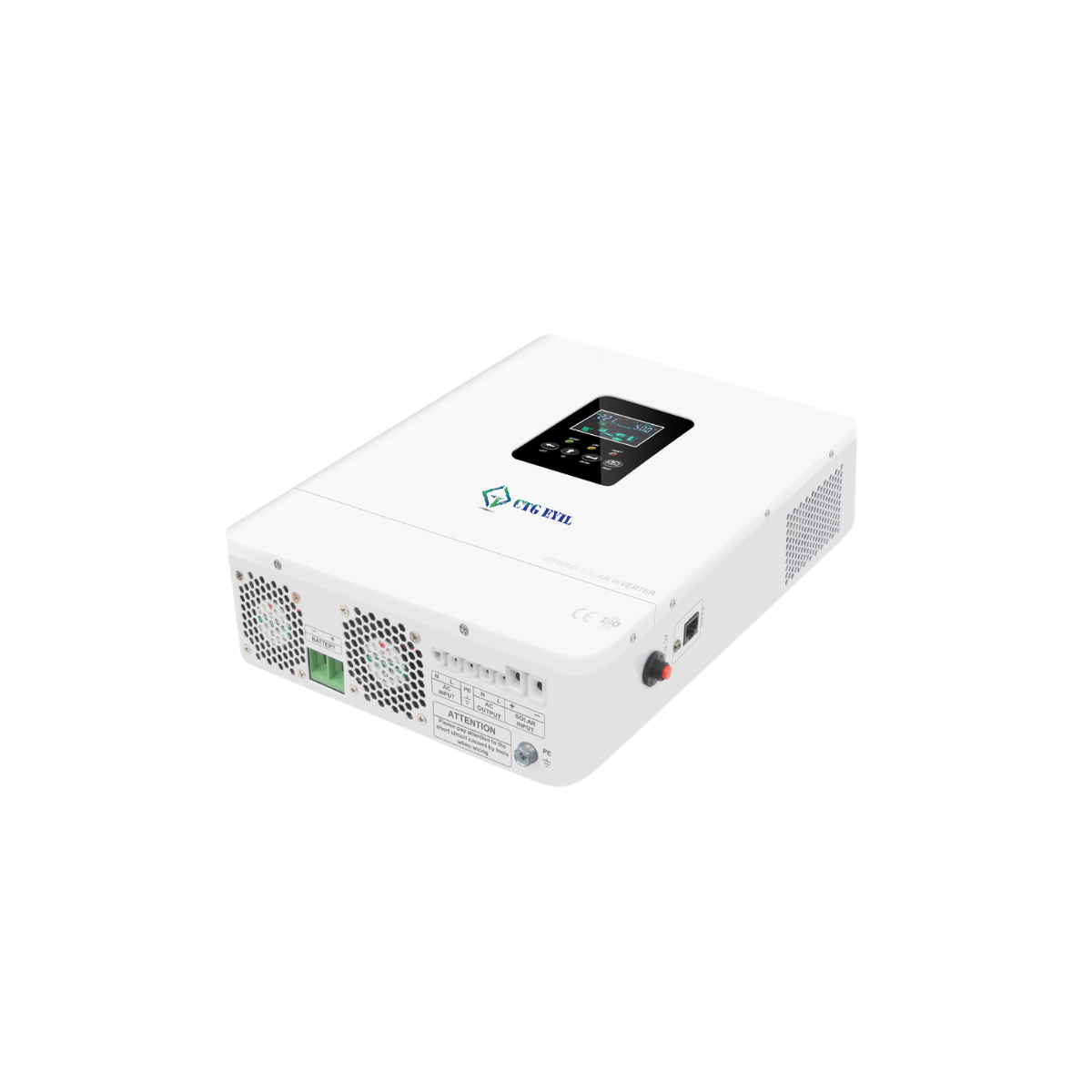

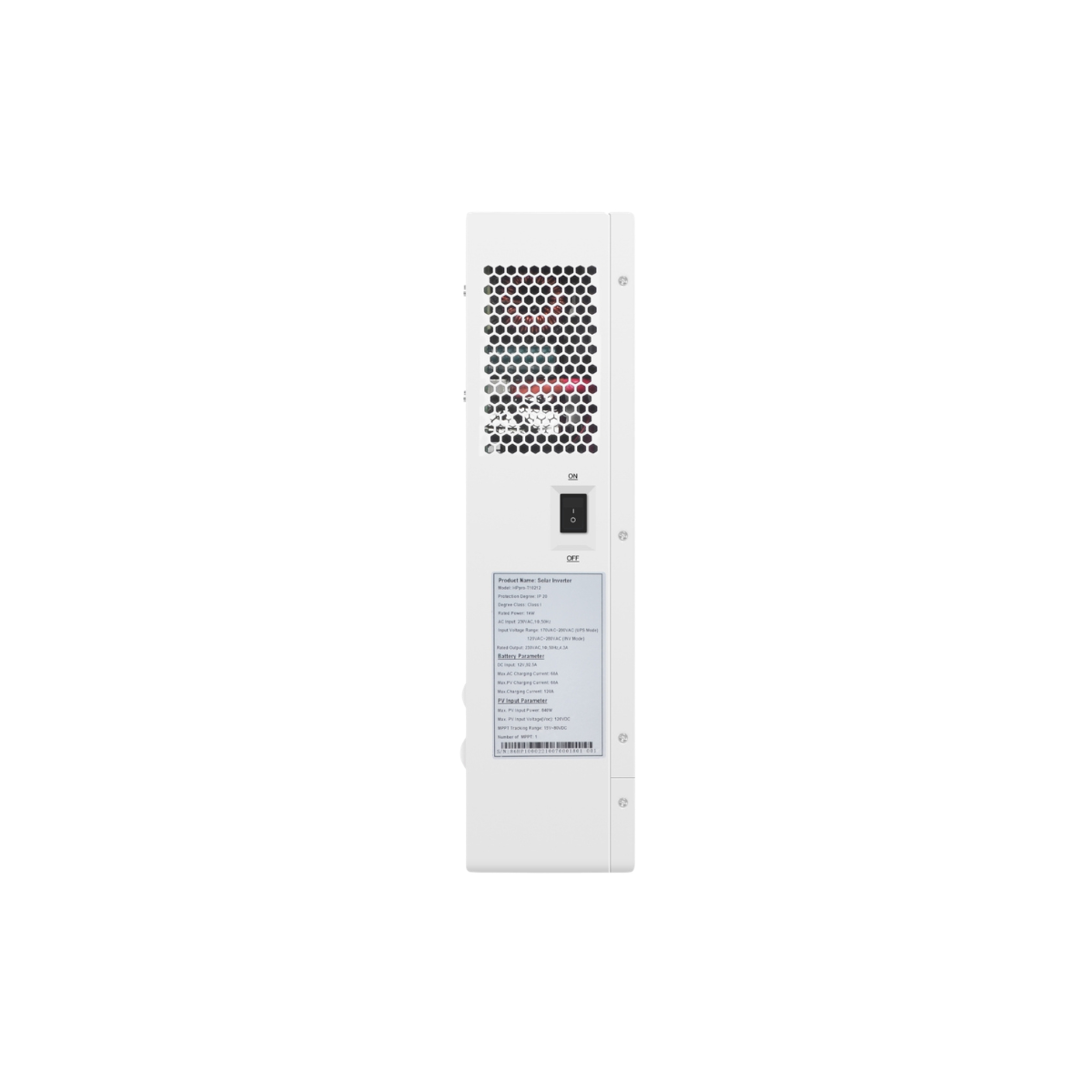

🔌 5kW Hybrid Inverter – Technical Specifications

AC Output

  • Rated Power: 5kW
  • Output Type: Pure Sine Wave
  • Output Voltage: 230V AC
  • Output Frequency: 50Hz / 60Hz
  • Peak Efficiency: >93%

Solar (PV) Input

  • MPPT Efficiency: ≥99.9%
  • PV Input Voltage Range: 120V – 450V
  • Max PV Input Power: 6500W (approx.)
  • MPPT Tracker: 1 unit

Battery

  • Battery Voltage: 48V
  • Compatible Battery Type: LiFePO₄ / Lead-acid
  • Max Charging Current: 80A – 100A (model dependent)

General

  • Display: LCD + LED Indicators
  • Communication: Wi-Fi / Mobile App
  • Protection: Overload, Over-voltage, Over-temperature, Short-circuit
  • Mounting: Wall Mount
  • Operating Temperature: 0°C to 50°C

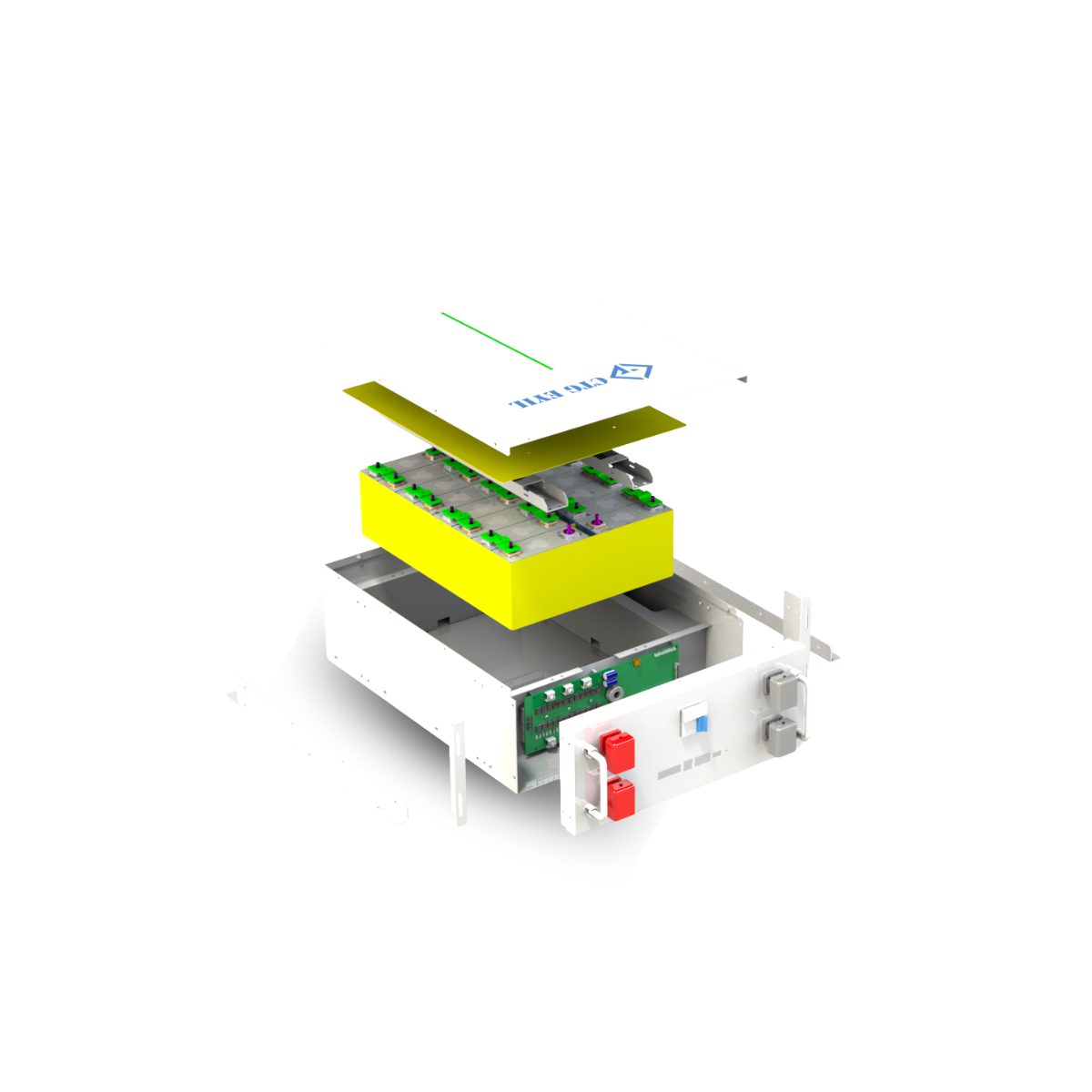

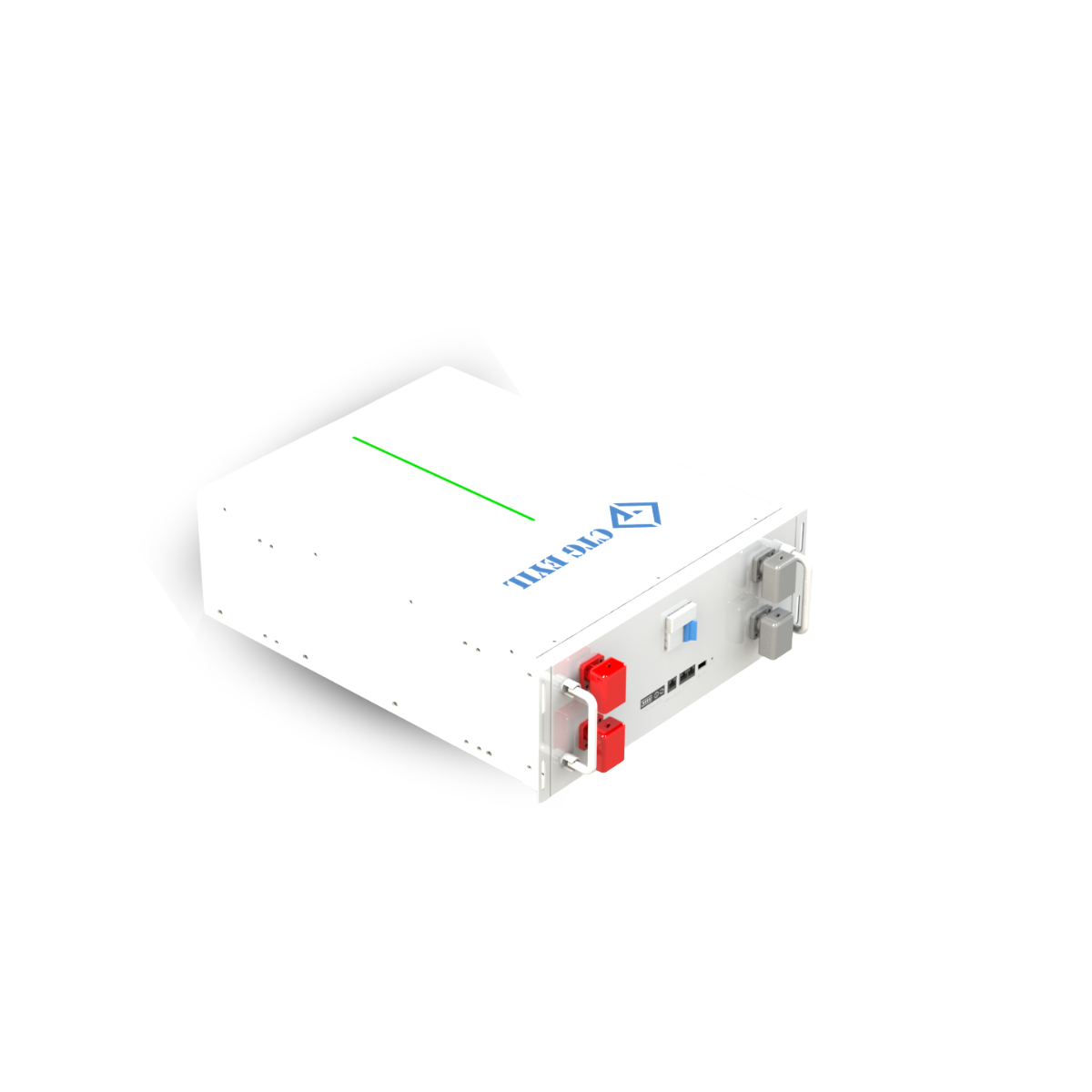

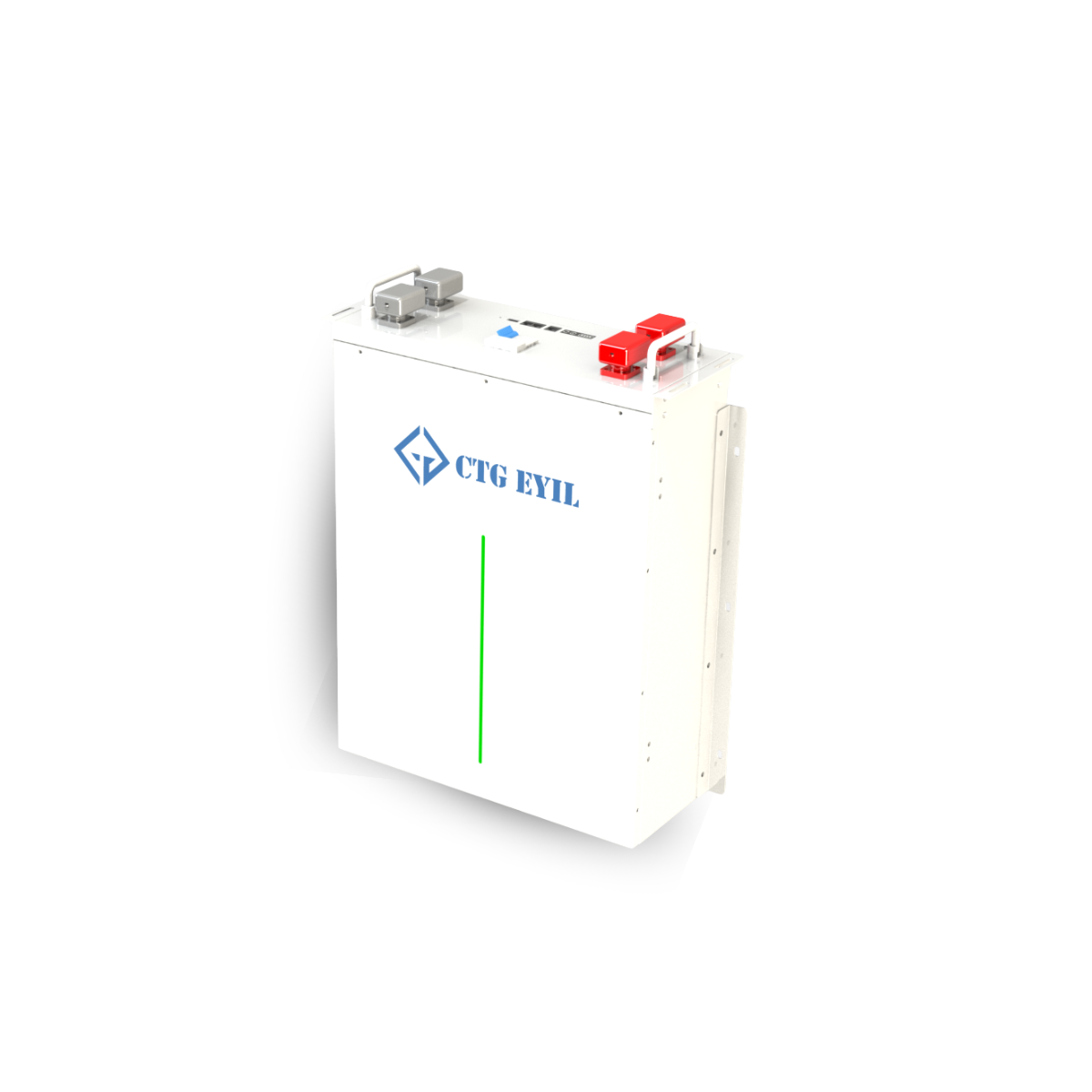

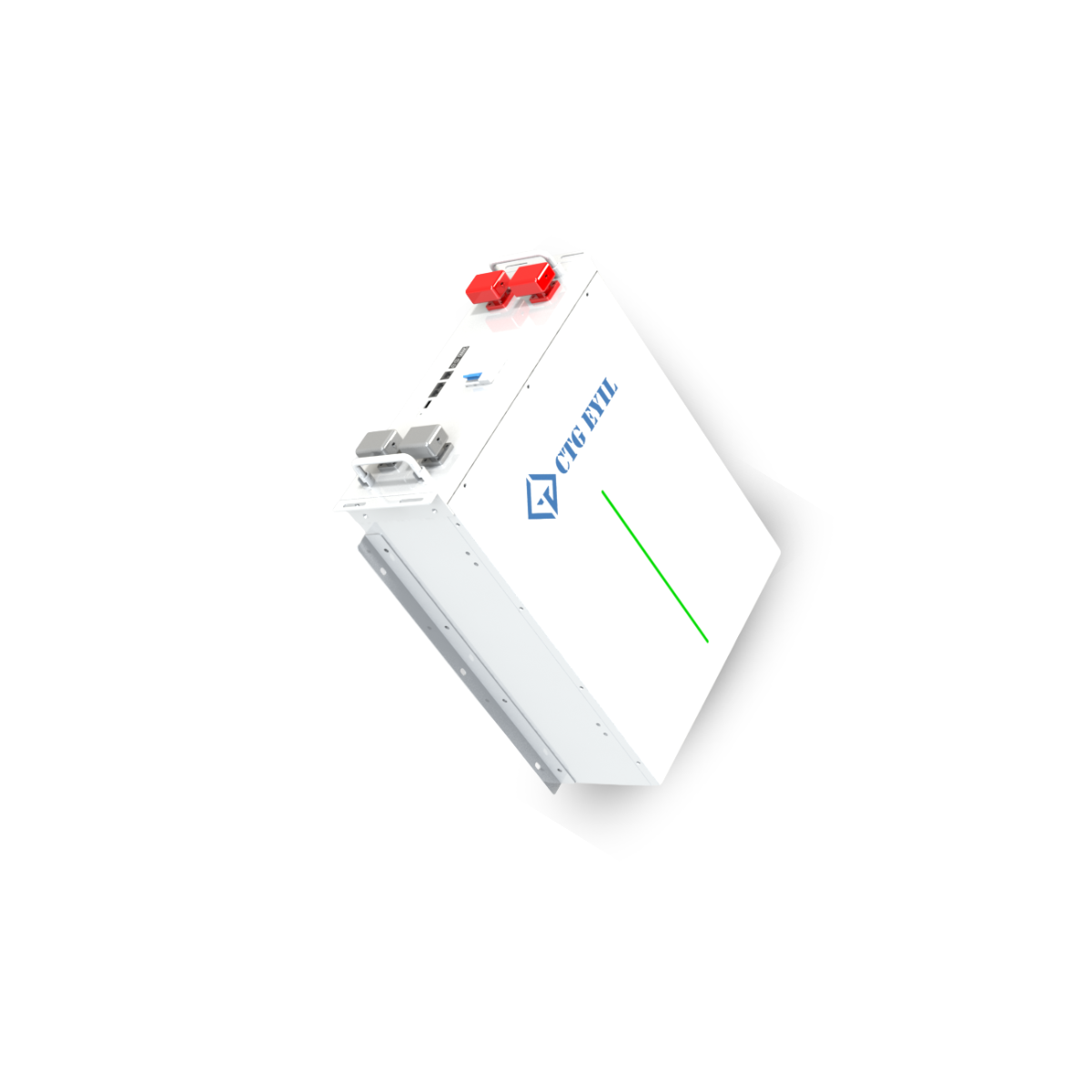

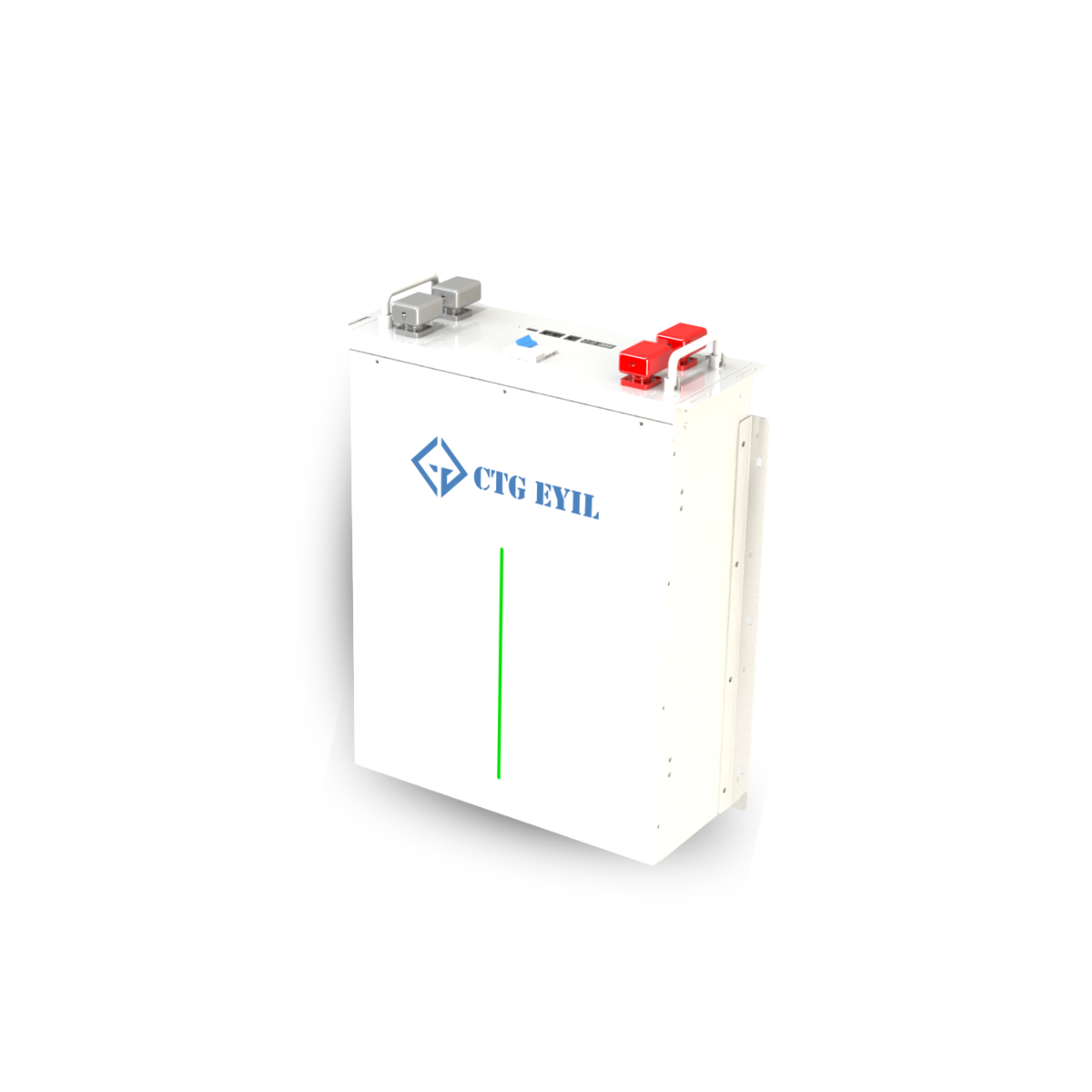

🔋 51.2V 100Ah Lithium Battery – Technical Specifications

Battery Specifications

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Energy: 5.12 kWh
  • Chemistry: LiFePO₄ (Lithium Iron Phosphate)
  • Cycle Life: ≥4500 Cycles (80% DOD)

Electrical Performance

  • Charge Voltage: 56.5V – 58.4V
  • Discharge Cut-off Voltage: 44.8V
  • Max Continuous Charge Current: 50A
  • Max Continuous Discharge Current: 100A
  • Communication Protocol: RS485 / CAN (BMS)

Safety & Protection

  • Built-in Smart BMS
  • Protections:
    Overcharge | Over-discharge | Overcurrent | Short Circuit | Cell Balancing | High Temp Protection

Design & Build

  • Mounting Type: Wall Mount / Stack Mount
  • Enclosure Rating: IP21
  • Case Material: Metal / Industrial-Grade Housing
  • Operating Temperature:
    Charge: 0°C to 55°C
    Discharge: -20°C to 60°C

🔌 5kW Hybrid Inverter Features

  • 5kW Pure Sine Wave Output – Ensures stable and clean power for all appliances.
  • Advanced MPPT ≥99.9% – Maximizes solar energy harvesting for higher efficiency.
  • Hybrid Operation – Seamless switching between Solar, Battery, and Grid.
  • Wi-Fi / Mobile App Monitoring – Real-time tracking and control from anywhere.
  • LCD Display – Easy configuration and system status visibility.
  • Comprehensive Protection System – Overload, over-temp, short-circuit, reverse polarity & surge protection.
  • Compact Wall-Mount Design – Space-saving and easy installation.

🔋 51.2V 100Ah LiFePO₄ Battery Features

  • High-Capacity 5.12kWh Storage – Ideal for both home and commercial energy needs
  • Smart BMS Technology – Protects against overcharge, over-discharge, overheating & short circuits.
  • Long Cycle Life ≥4500 Cycles – Durable, long-lasting performance with stable output.
  • Modular Wall & Stack Mount Design – Flexible installation with expandability.
  • Efficient Charge/Discharge Performance – Maintains high efficiency even under heavy load.
  • Safe LiFePO₄ Chemistry – Thermal stability and enhanced safety for long-term use.

🛒 Order Information:

  • Orders can be placed online via our secure checkout.
  • For bulk or B2B orders, contact our sales team directly.
  • COD (Cash on Delivery) not available for battery products.

🚚 Delivery Details:

  • Delivery within 4–7 working days across major cities in India.
  • Rural or remote area deliveries may take up to 10 days.
  • Our logistics partners ensure safe handling and transit of all battery shipments.
  • Shipping charges may vary based on location and order size.
  • You will receive tracking information via SMS and email after dispatch.

📦 Packaging & Safety:

  • All batteries are packed with proper insulation to avoid damage during transit.
  • Each shipment is , wherever applicable.

🔁 Returns & Replacement:

  • Batteries are non-returnable once delivered unless damaged or defective.
  • If the product is damaged in transit, raise a complaint within of delivery.

📦 What’s in the Box

Everything you need for a smooth, quick, and safe installation is included:

🔌 5kW Hybrid Inverter Package

  • Hybrid Inverter (48V 5kW) – Main unit for solar, battery & grid integration
  • Wall-Mount Hanger – Strong support for secure installation
  • Wi-Fi Dongle – Enables mobile app & remote monitoring
  • User Manual – Complete installation & operation guide

🔋 51.2V 100Ah Lithium Battery Package

  • CTG EYIL 51.2V 100Ah Battery Module – Preassembled, plug-and-play
  • Wall / Stack Mount Brackets & Hardware – For stable, space-saving installation
  • Power Connecting Cable – Safe and efficient energy transfer
  • RS485 Communication Cable – For data exchange with inverter/monitoring system
  • User Manual – Step-by-step installation & safety instructions
