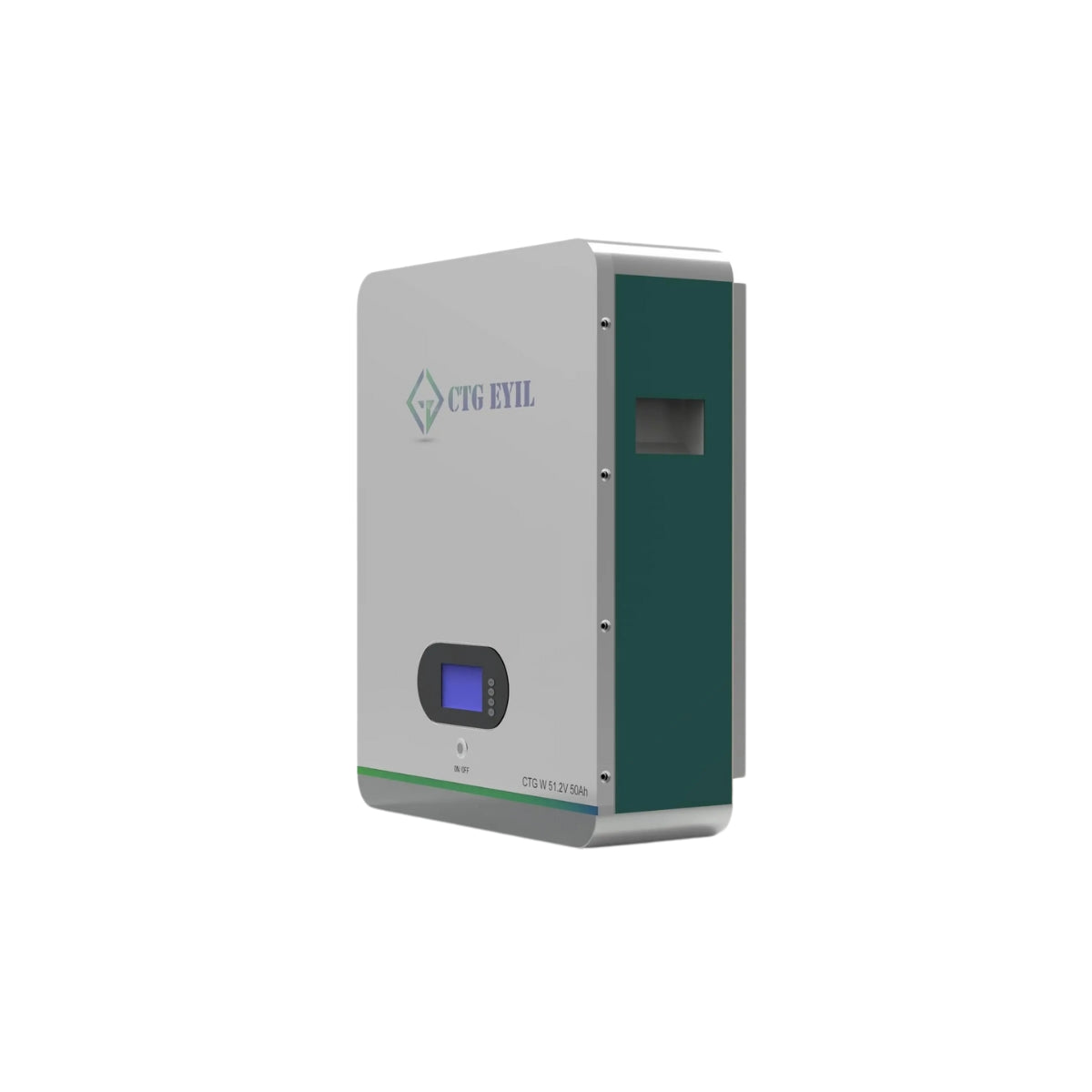

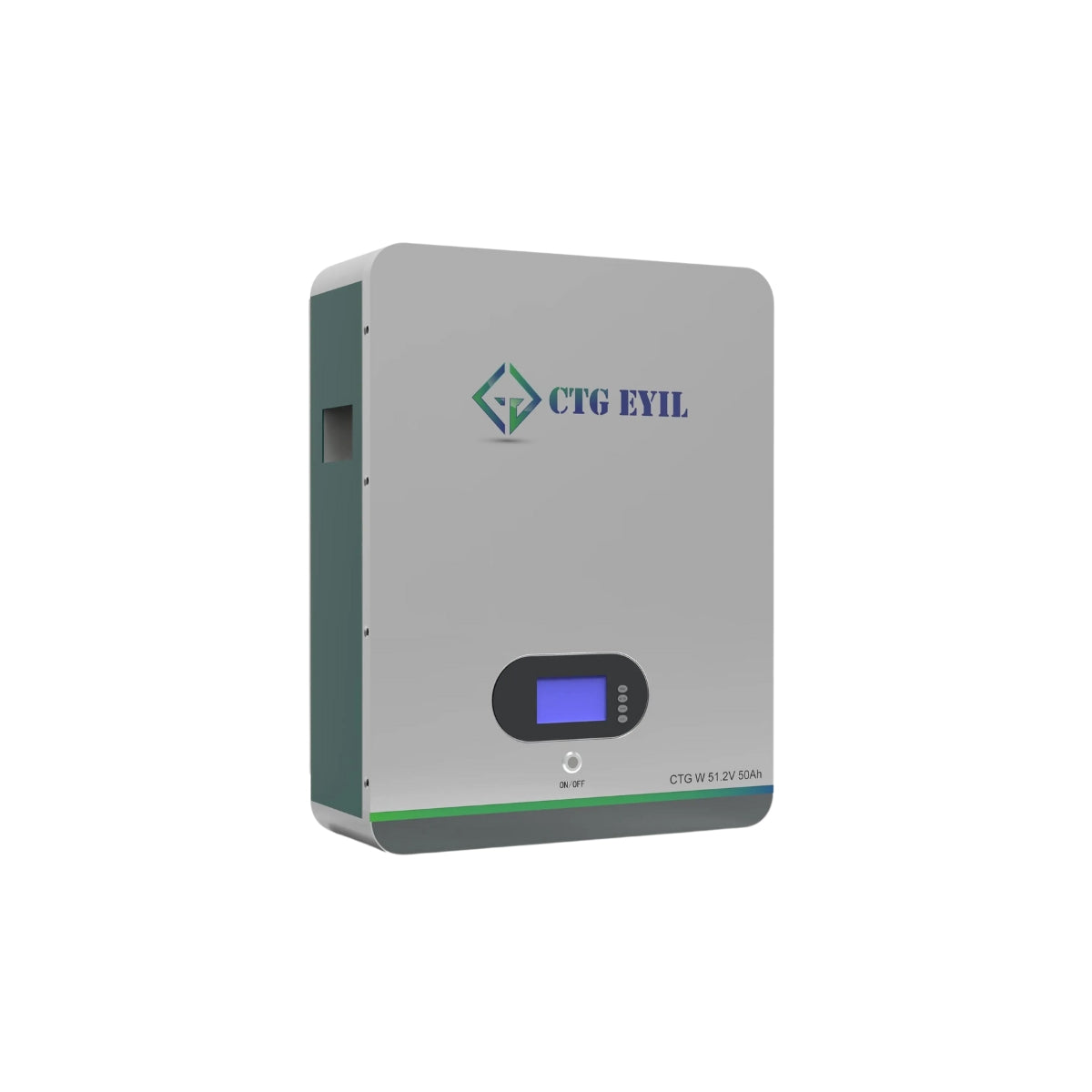

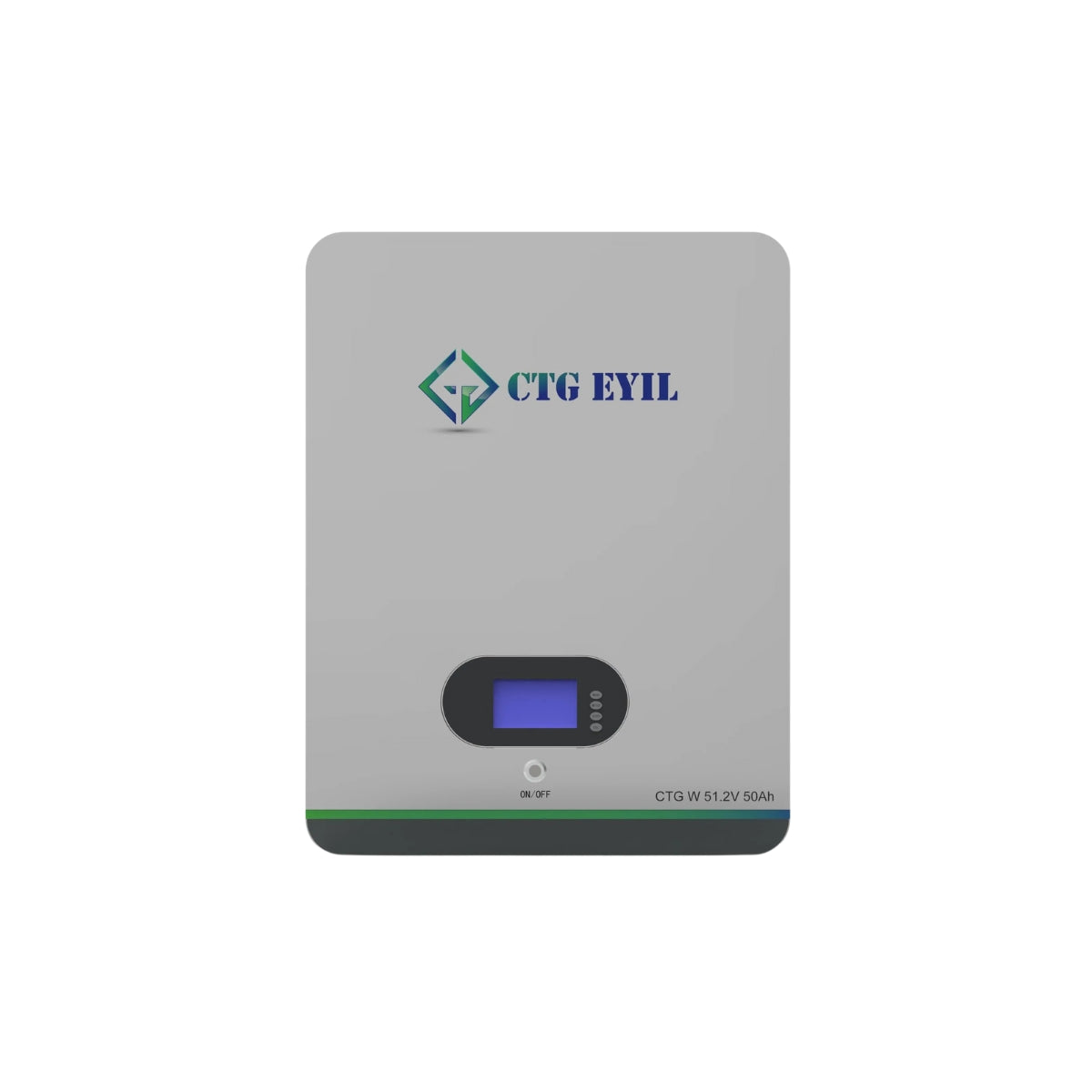

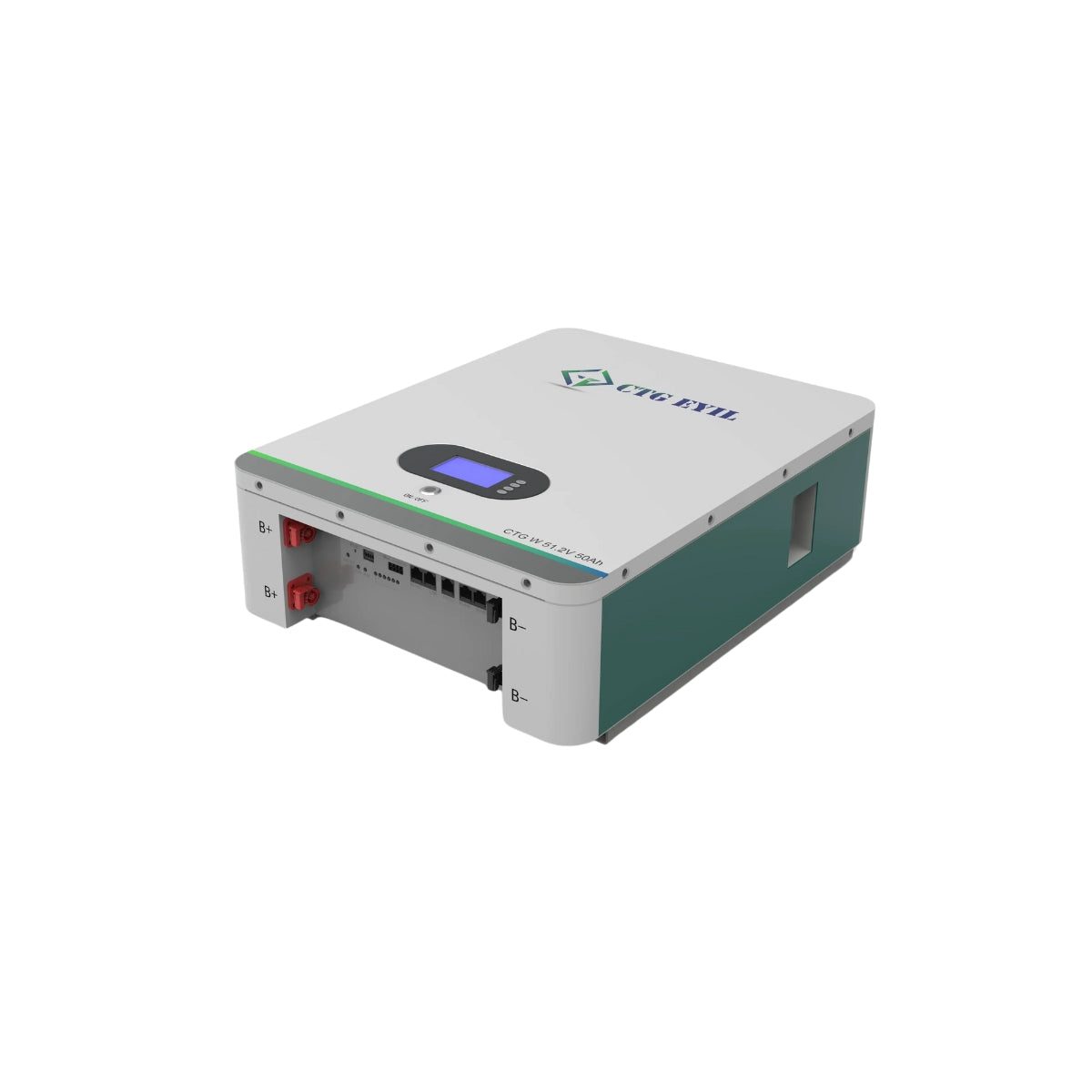

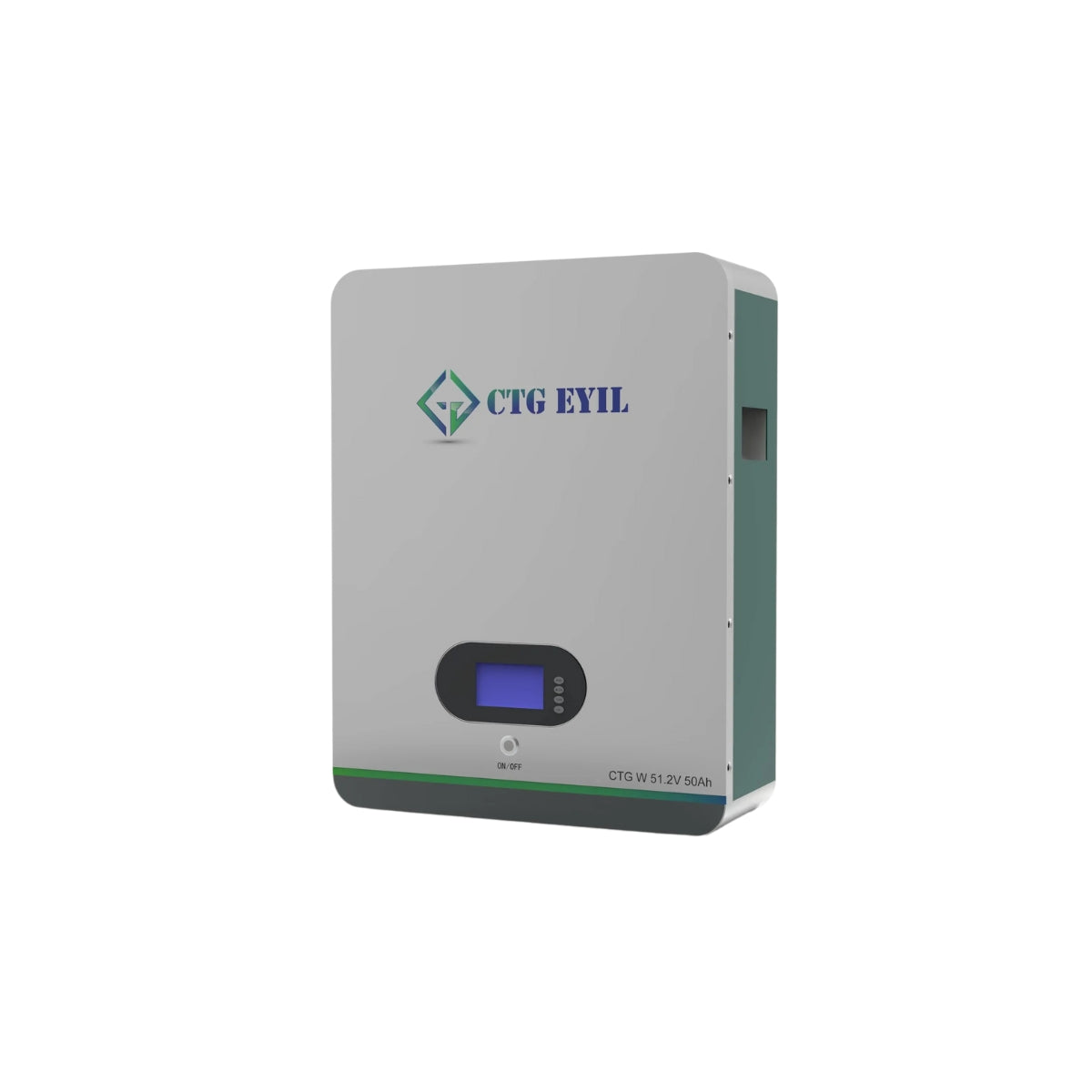

Wall Mount 51.2V 50Ah Lithium-Ion battery
Couldn't load pickup availability
The CTG 51.2V 50Ah Wall Mount Battery Pack is designed for compact home and commercial energy storage. Built with high-quality LiFePO₄ cells, it ensures long cycle life, high efficiency, and stable performance. Ideal for users seeking a space-saving and scalable backup solution.
Key Features:
- Smart BMS with LED display for system monitoring
- Easy wall-mount installation and maintenance
- Scalable up to 16 units in parallel for higher capacity
- Supports CAN & RS485 communication for system integration
Warranty
3-Years of Warranty.
Delivery
Safe & Secure Delivery.
- Specifications
- Features
- Checkout & delivery
- What is in the Box?
Configuration: 16S1P
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah
Rated Energy: 2.56kWh
Operating Voltage Range: 43.2V – 58.4V
Max Charge Current: 50A
Max Discharge Current: 150A
Communication Mode: CAN & RS485
Weight: Approx. 29kg
IP Rating: IP21
Dimensions (L×W×H): 490×380×158 mm
Warranty: 10 Years or 4500 Cycles (T&Cs Apply)
1. Modular & Scalable Design
Each battery pack supports up to 16 units connected in parallel, allowing seamless expansion of total capacity. This makes it ideal for both small-scale home setups and large industrial energy storage systems.
2. Integrated Smart BMS with LED Display
Equipped with an intelligent Battery Management System (BMS) for real-time monitoring of voltage, current, temperature, and state of charge. The built-in LED display ensures easy status visualization and system diagnostics.
3. Easy Wall-Mount Installation
Compact and lightweight construction with a wall-mountable enclosure ensures simple installation, saving floor space and enabling a clean, modern look for residential or commercial sites.
4. Reliable Communication Interface
Supports CAN and RS485 communication protocols, ensuring seamless integration with hybrid inverters, energy management systems, and other smart devices.
5. High Performance & Efficiency
Built with 3.2V 104Ah LiFePO₄ cells, offering excellent energy density, stable voltage output, and high efficiency for both charging and discharging cycles.
6. Long Cycle Life & Extended Warranty
Engineered for durability with over 4500 charge/discharge cycles at 80% depth of discharge (DOD) and backed by a 10-year warranty, ensuring long-term reliability.
7. Wide Operating Temperature Range
Performs reliably in diverse conditions, from –20°C to 55°C, with optimal charging performance between 0°C and 55°C.
8. Safe & Robust Construction
Incorporates protection against over-charge, over-discharge, over-current, and short circuits, ensuring safety for home and industrial environments. Enclosure rated IP21 for indoor use.
9. Expandable Energy Options
Available in 2.56kWh, 3.84kWh, and 5.12kWh models, making it flexible to meet varied energy storage needs without changing system design.
🛒 Order Information:
- Orders can be placed online via our secure checkout.
- For bulk or B2B orders, contact our sales team directly.
- COD (Cash on Delivery) not available for battery products.
🚚 Delivery Details:
- Delivery within 4–7 working days across major cities in India.
- Rural or remote area deliveries may take up to 10 days.
- Our logistics partners ensure safe handling and transit of all battery shipments.
- Shipping charges may vary based on location and order size.
- You will receive tracking information via SMS and email after dispatch.
📦 Packaging & Safety:
- All batteries are packed with proper insulation to avoid damage during transit.
- Each shipment is , wherever applicable.
🔁 Returns & Replacement:
- Batteries are non-returnable once delivered unless damaged or defective.
- If the product is damaged in transit, raise a complaint within of delivery.
Your CTG Wall Mount Battery package comes complete with all the essential components for quick and secure installation:
- 🔋 CTG EYIL Wall Mount Battery Module – Preassembled and ready for plug-and-play operation.
- 🧱 Wall Mount Hanger & Mounting Hardware – Ensures sturdy and space-saving wall installation.
- 🔌 Power Connecting Cable – Designed for safe and efficient energy transfer.
- 🧠 RS485 Communication Cable – Enables seamless data exchange between the battery and inverter or monitoring system.
- 📘 User Manual – Step-by-step guide for installation, operation, and safety instructions.
