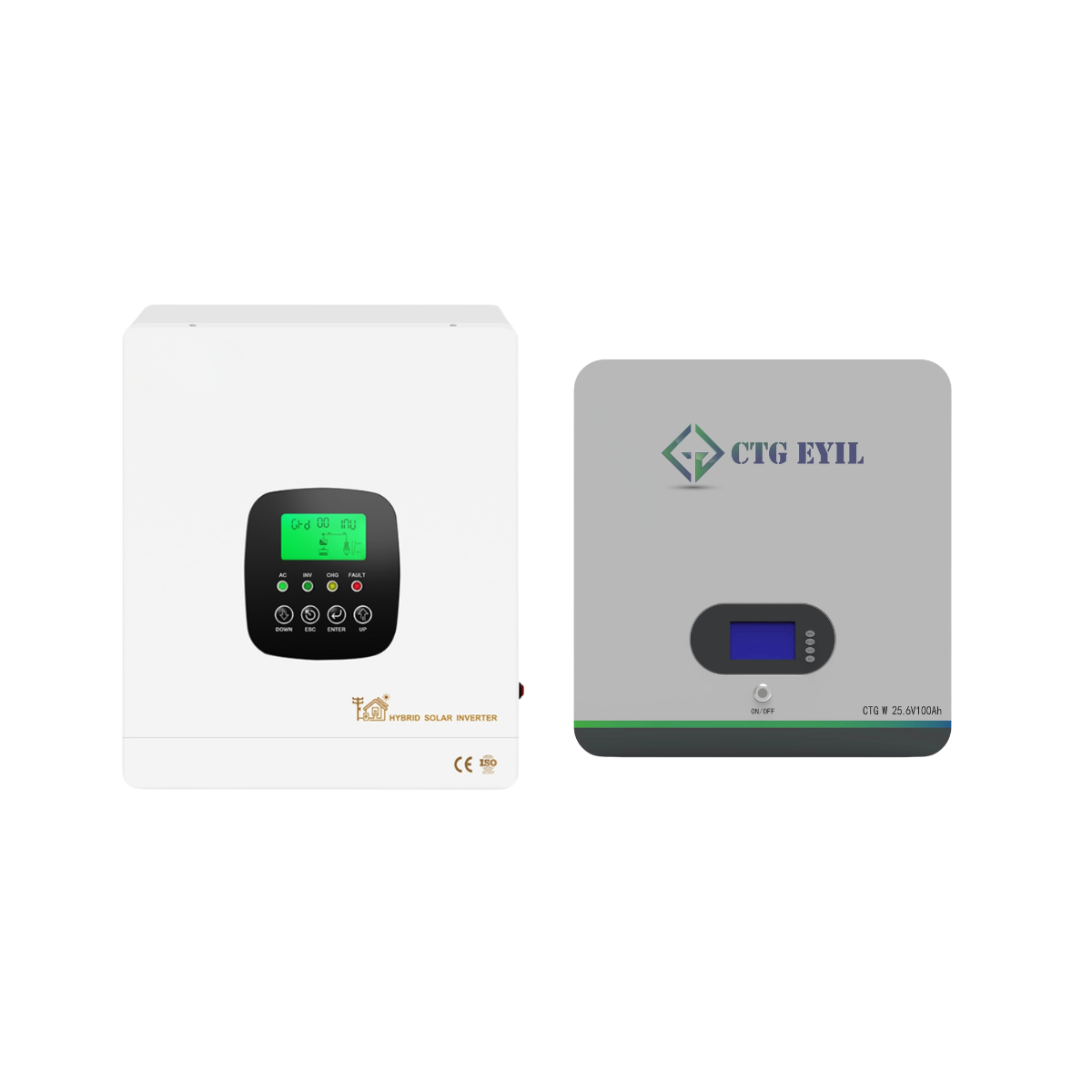

24V Combo - 24V 3.3kW Hybrid Inverter + 25.6V 100Ah Wall Mount Lithium Battery

Rs. 70,999.00
Rs. 70,999.00 Rs. 79,999.00
Sale Sold out

The 24V Combo features a powerful 3.3kW Hybrid Inverter paired with a 25.6V 100Ah Wall-Mount Lithium Battery, delivering stable, efficient, and smart power backup for homes and commercial spaces. Equipped with advanced MPPT technology, pure sine wave output, and long-life LiFePO₄ storage, this combo ensures seamless solar, battery, and grid integration for uninterrupted performance.

🌟 Key Highlights

  • 3.3kW Pure Sine Wave Hybrid Inverter
  • High-Efficiency MPPT (≥99.9%)
  • Solar + Battery + Grid Smart Switching
  • 25.6V 100Ah LiFePO₄ Wall-Mount Battery
  • Smart BMS with LED Display
  • Scalable up to 16 Units
  • Wi-Fi / App Monitoring
  • Long Cycle Life ≥4500 with 5-Year Warranty

Service

Life-time service support

Delivery

Safe & Secure Delivery.

View Product Details
Product Product subtotal Quantity Price Product subtotal
24V Combo - 24V 3.3kW Hybrid Inverter + 25.6V 100Ah Wall Mount Lithium Battery
24V Combo - 24V 3.3kW Hybrid Inverter + 25.6V 100Ah Wall Mount Lithium Battery
24V Combo - 24V 3.3kW Hybrid Inverter + 25.6V 100Ah Wall Mount Lithium Battery
Rs. 70,999.00/ea
Rs. 79,999.00
Rs. 0.00
Rs. 70,999.00/ea
Rs. 79,999.00
Rs. 0.00
  • Specifications
  • Features
  • Checkout & delivery
  • What is in the Box?

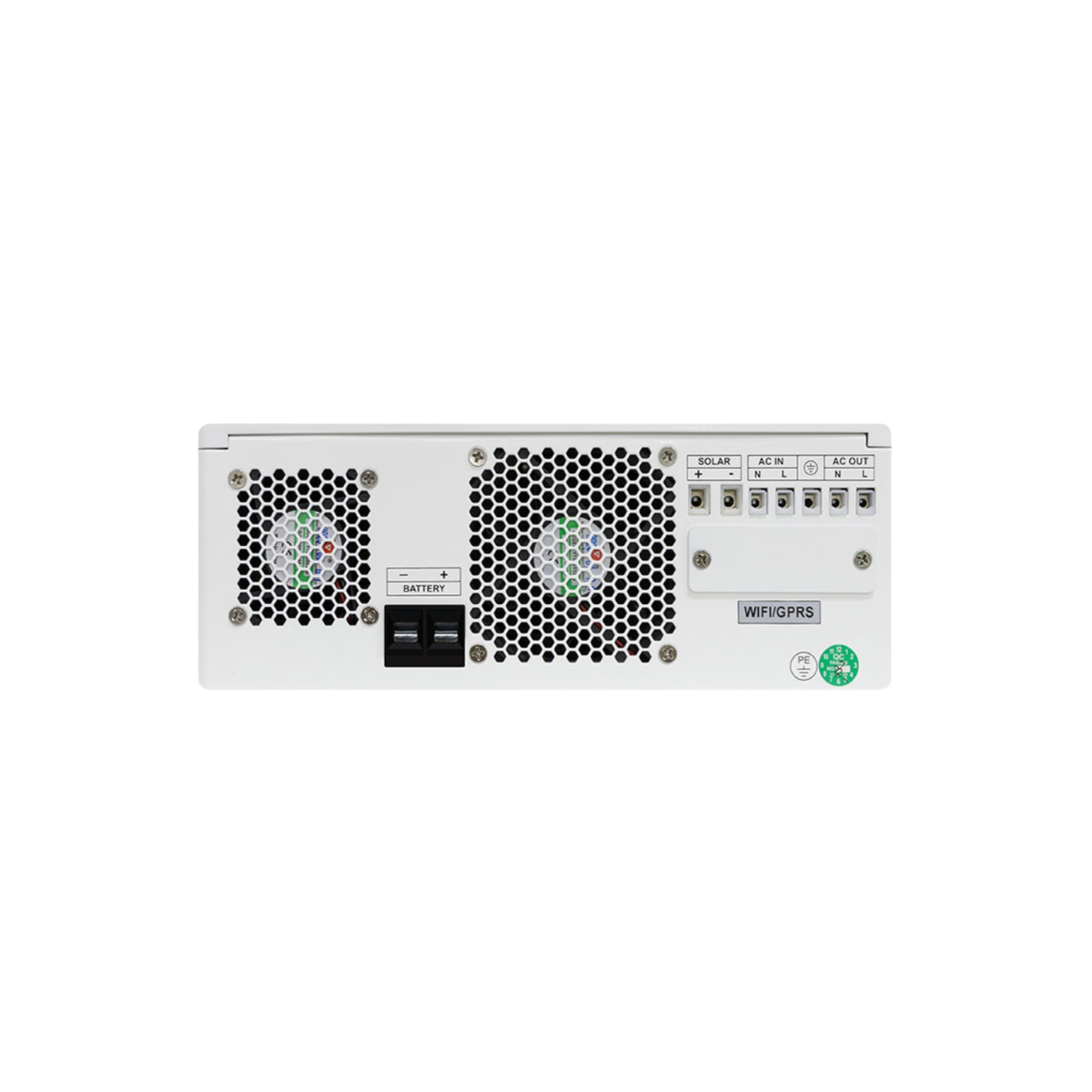

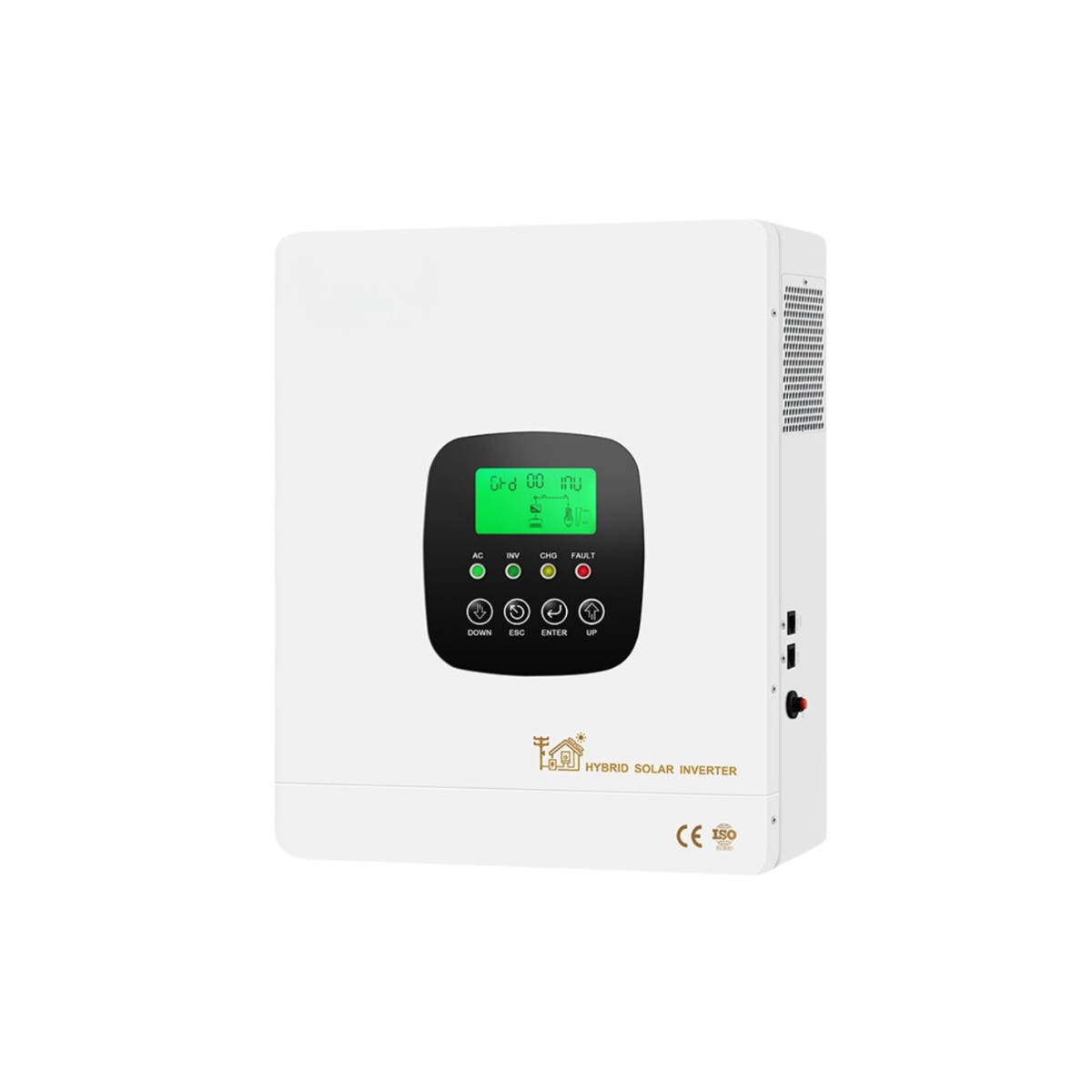

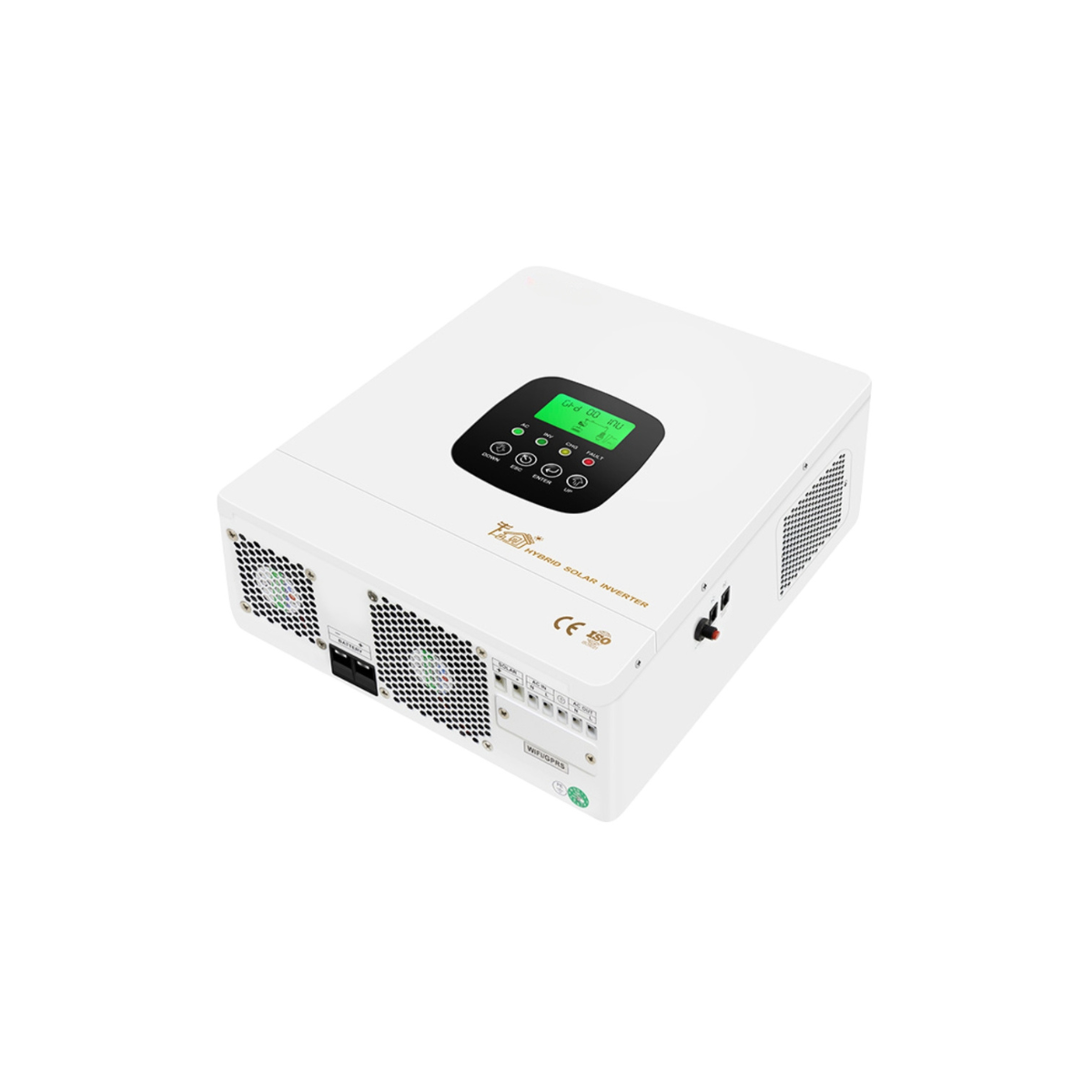

🔌 Hybrid Inverter – 24V 3.3kW

Electrical Specifications

  • Rated Power: 3.3kW (3300W)
  • Output Type: Pure Sine Wave
  • Battery Voltage: 24V
  • Maximum PV Input Power: 4000W (approx.)
  • MPPT Efficiency: ≥99.9%
  • PV Input Voltage (Max): 100–145V DC (model dependent)
  • PV Operating Voltage Range: 60–115V
  • Max PV Charging Current: 80–100A (based on model)
  • AC Input Voltage: 230V ± 10%
  • AC Output Voltage: 230V ± 5%
  • Frequency Range: 50/60Hz auto-sensing
  • Switching Time: < 10 ms

Battery Charging

  • Charging Mode: Solar / Grid / Hybrid
  • Max Charging Current: 60A–80A (configurable)
  • Battery Types Supported: LiFePO₄, Lead Acid, AGM, Gel
  • Charge Algorithm: Smart 3-Stage Charging

Monitoring & Control

  • Display: LCD + LED Indicators
  • Communication: Wi-Fi (with included dongle)
  • Protection: Overload, Short Circuit, Overheat, Battery Reverse, Surge

Physical

  • Mounting: Wall-Mount
  • Cooling: Intelligent Fan Control
  • Operating Temperature: 0°C to 55°C
  • Design: Compact High-Efficiency Design

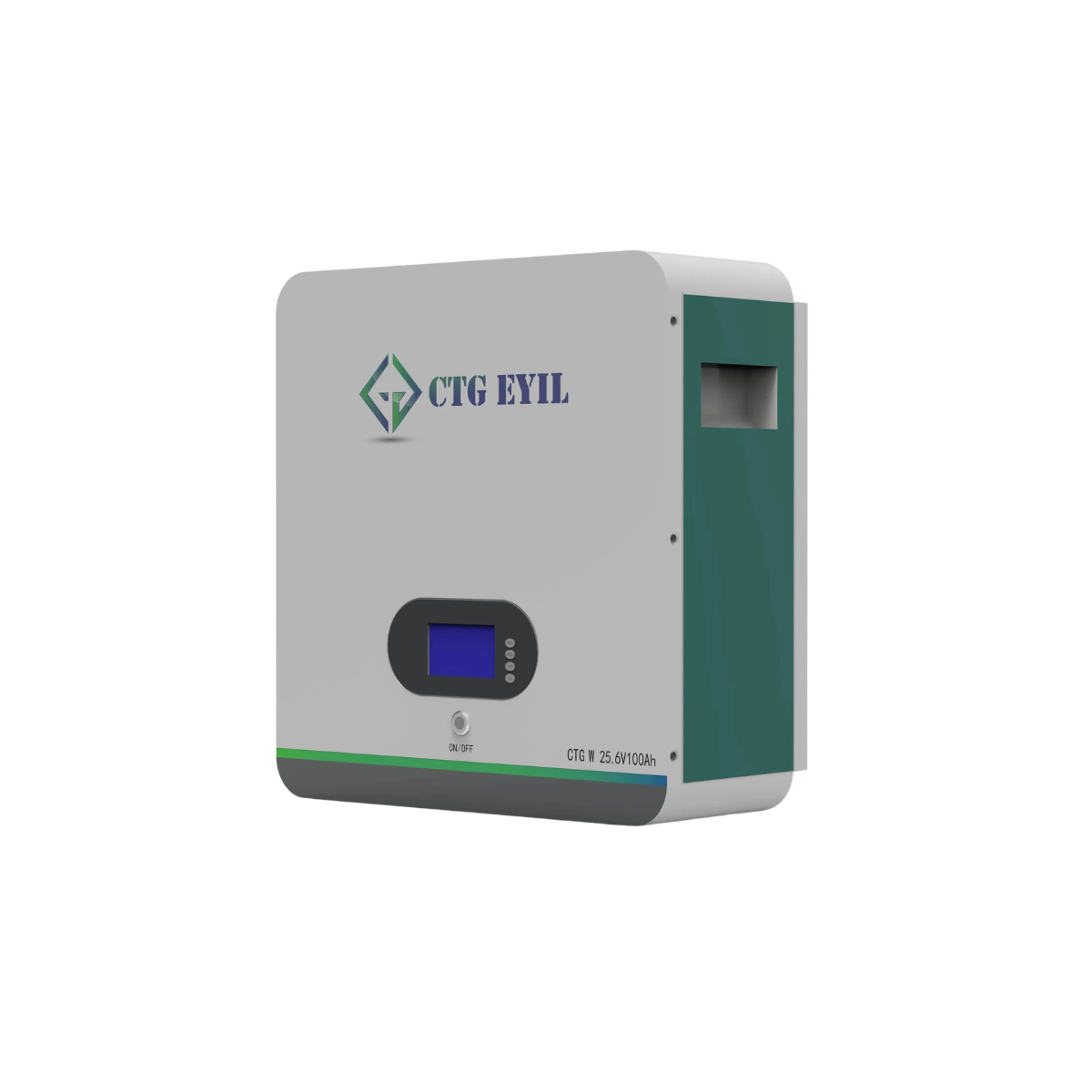

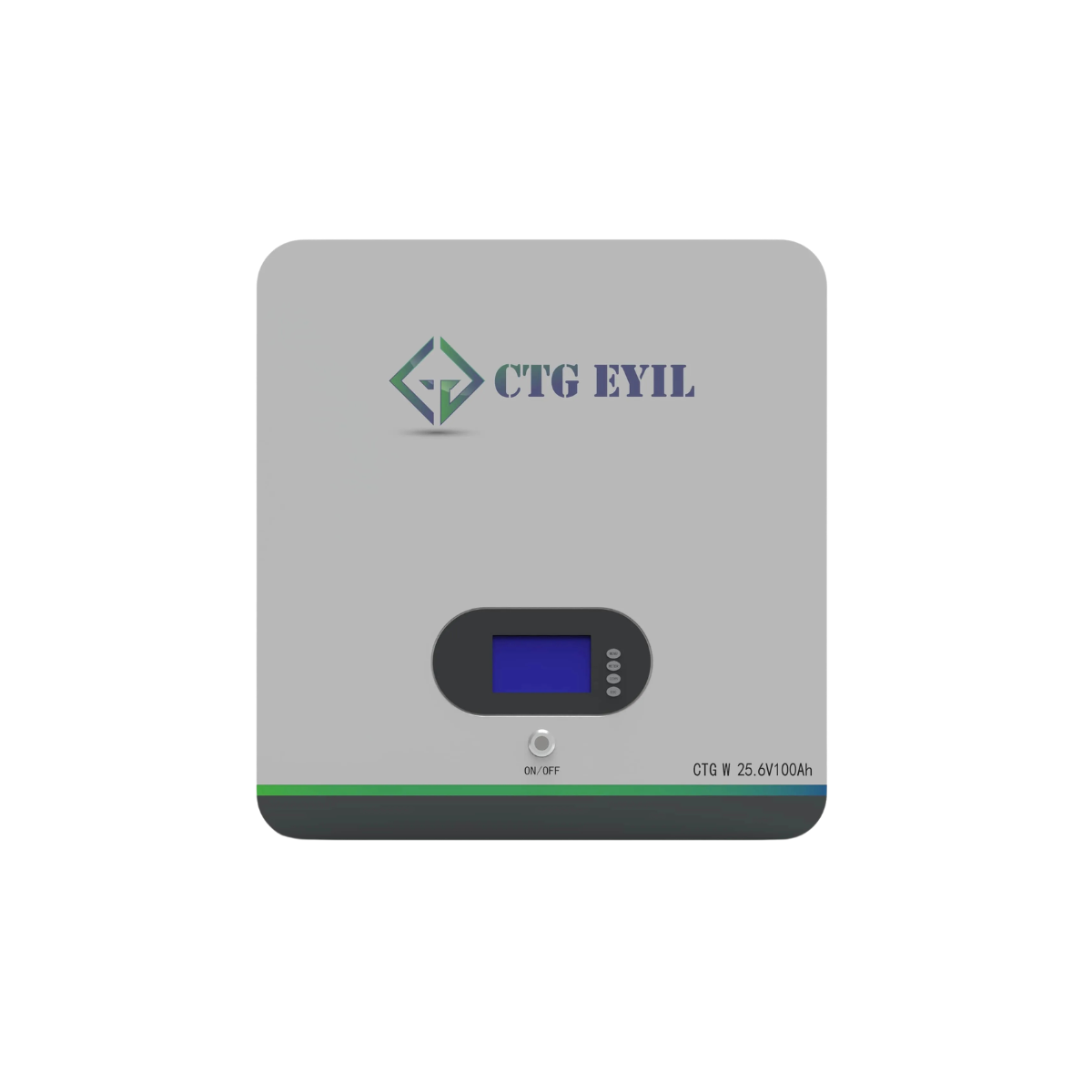

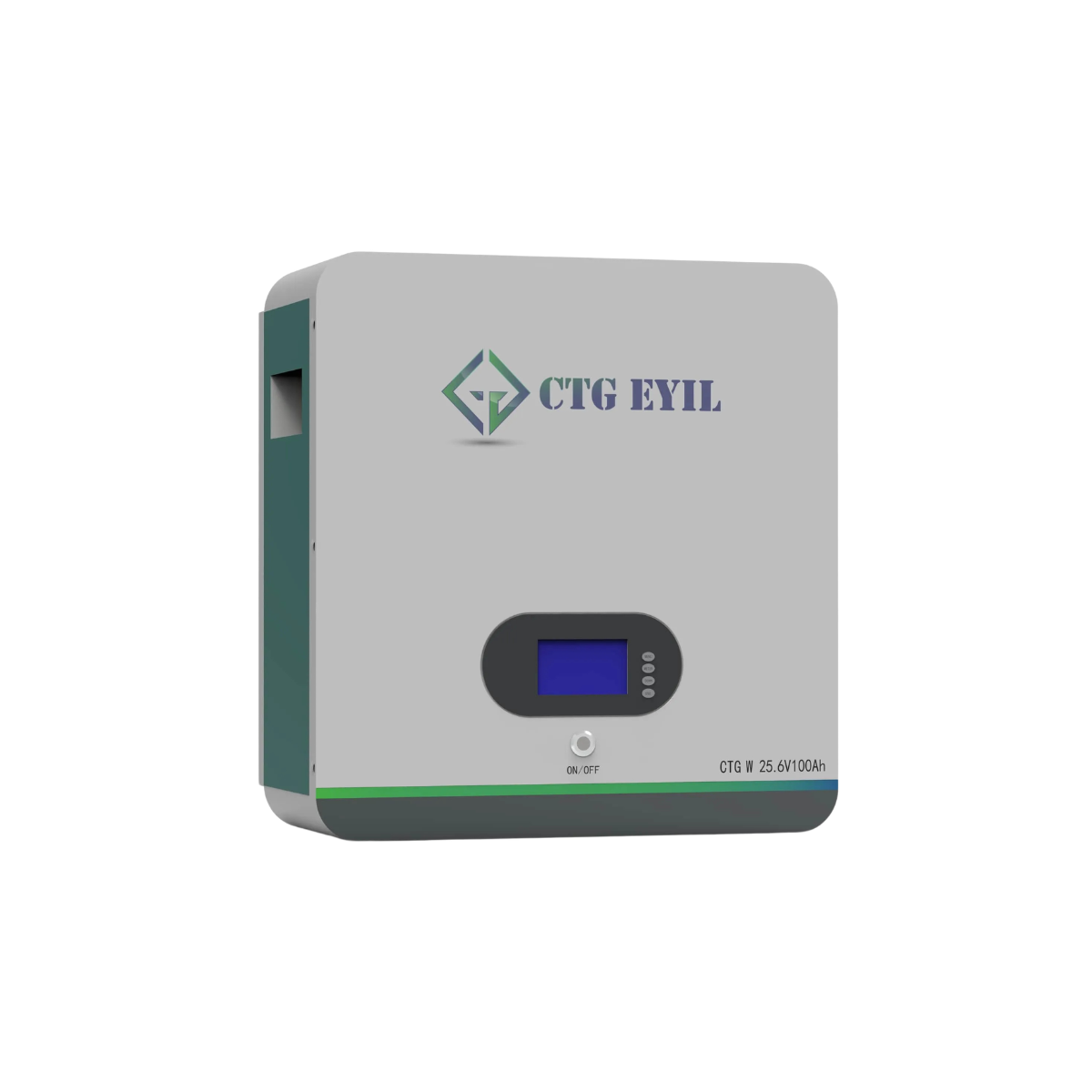

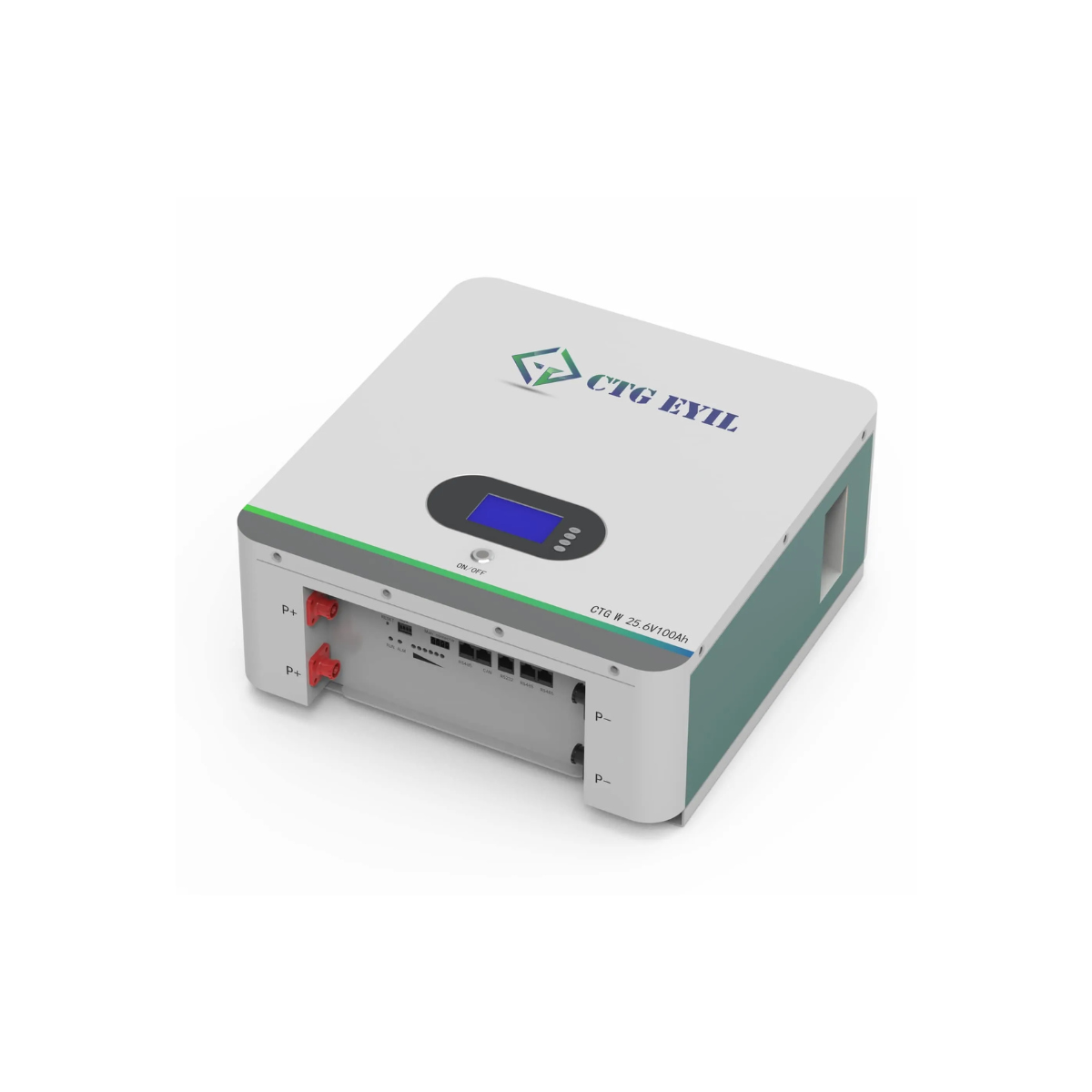

🔋 Wall-Mount Lithium Battery – 25.6V 100Ah (LiFePO₄)

Electrical Specifications

  • Rated Voltage: 25.6V
  • Rated Capacity: 100Ah
  • Energy: 2.56kWh
  • Battery Type: LiFePO₄ (Lithium Iron Phosphate)
  • Cycle Life: ≥4500 Cycles @ 80% DOD
  • Max Charge Voltage: 29.2V
  • Discharge Cut-off Voltage: 20V
  • ax Continuous Charge Current: 50A
  • Max Continuous Discharge Current: 100A

BMS (Batery Management System)

  • Integrated Smart BMS
  • Protections:
    Overcharge
    Over-Discharge
    Over-Current
    Short Circuit
    High/Low Temperature
    Cell Balancing
  • Communication: RS485

Physical

  • Design: Wall-Mount Slim Design
  • Case Material: High-Strength Metal/ABS (model dependent)
  • Display: LED Status Indicator
  • Weight: Approx. 22–28 kg
  • Operating Temperature:
    Charging: 0°C to 55°C
    Discharging: –20°C to 60°C

Warranty

  • 5 Years (Manufacturer)
  • Life Expectancy: 10–15 Years

🔌 24V 3.3kW Hybrid Inverter – Detailed Features

  • Pure Sine Wave Output (3.3kW)
    Ensures stable, low-noise power for all sensitive electronics and appliances.
  • High-Efficiency MPPT Controller (≥99.9%)
    Maximizes solar power generation with fast and accurate tracking.
  • Hybrid Power Management
    Seamlessly switches between Solar / Battery / Grid for uninterrupted power.
  • Smart LCD Display & User-Friendly Interface
    Allows easy configuration of modes, charging options, and system parameters.
  • Wi-Fi / Mobile App Monitoring
    Real-time tracking of production, battery status, load, and grid usage from anywhere.
  • Wide PV Input Range
    Supports multiple string configurations and higher solar panel flexibility.
  • Fast Charging Technology
    Efficiently charges lithium batteries with optimized algorithms.
  • Integrated Protection System
    Overload, short-circuit, over-temperature, reverse polarity, surge protection.
  • Silent & Efficient Operation
    Advanced thermal design for cooler, quieter, and long-lasting performance.
  • Compact Design
    Saves space and supports wall-mount installation for clean setup.

🔋 25.6V 100Ah Wall-Mount Lithium Battery – Detailed Features

  • High-Performance LiFePO₄ Cells
    Ensures maximum safety, high temperature tolerance, and long service life.
  • Long Cycle Life (≥4500 cycles)
    Delivers many years of reliable backup with 10-year expected lifespan.
  • Smart BMS (Battery Management System)
    Protects against overcharge, over-discharge, short-circuit, cell imbalance & overheating.
  • LED Status Display
    Provides real-time insights on battery health, charge, and performance.
  • Scalable Capacity (Up to 16 Units in Parallel)
    Expand storage from 2.56kWh to large-scale systems, depending on requirement.
  • Wall-Mount Compact Design
    Saves floor space and provides a neat, modern installation.
  • High Energy Efficiency
    Low self-discharge and high output stability for maximum performance.
  • Fast & Safe Charging
    Optimized for solar inverters and hybrid systems.

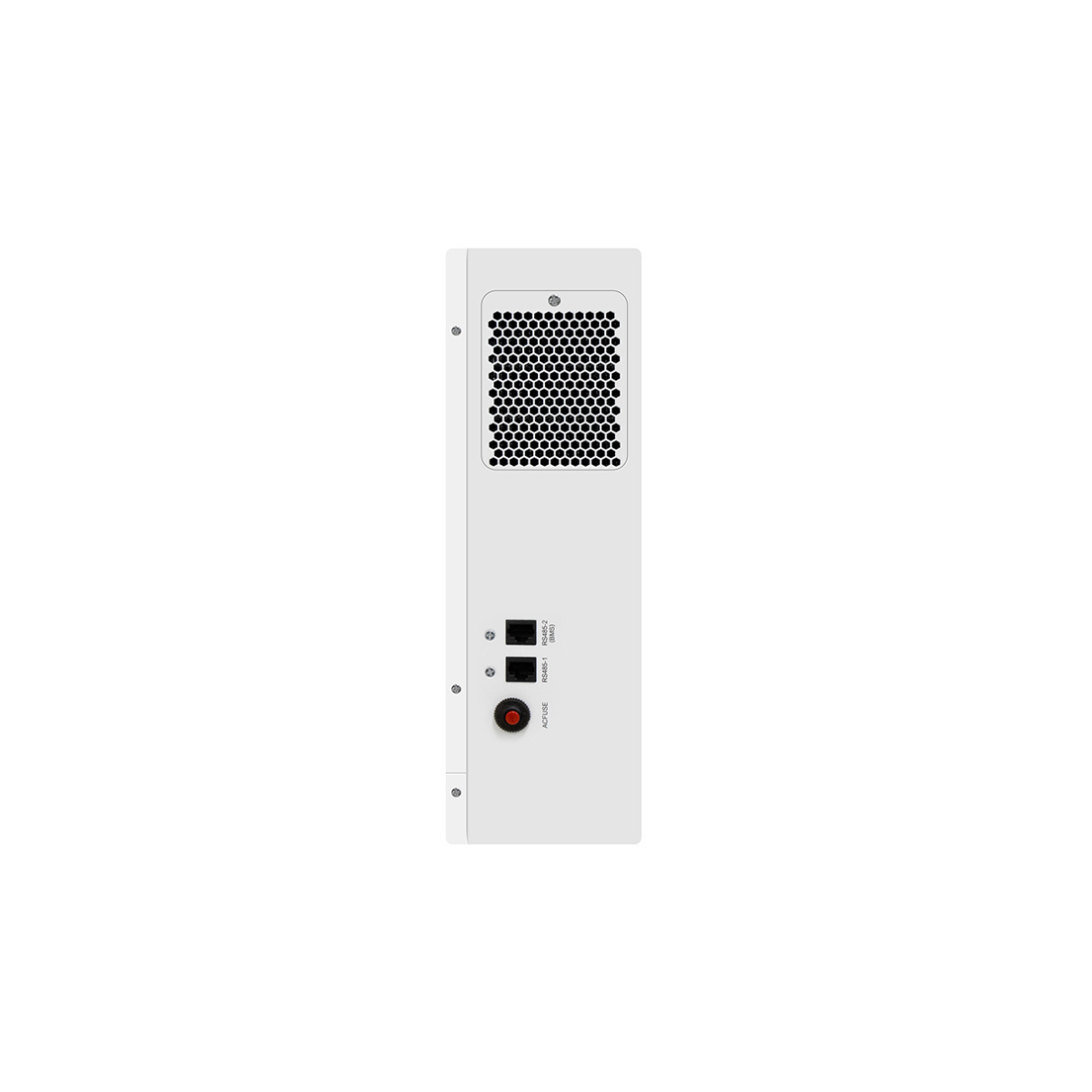

  • RS485 Communication Support
    Enables smooth data exchange with inverters and monitoring devices.
  • Maintenance-Free Construction
    No water topping or complex servicing required—plug-and-play design.

🛒 Order Information:

  • Orders can be placed online via our secure checkout.
  • For bulk or B2B orders, contact our sales team directly.
  • COD (Cash on Delivery) not available for battery products.

🚚 Delivery Details:

  • Delivery within 4–7 working days across major cities in India.
  • Rural or remote area deliveries may take up to 10 days.
  • Our logistics partners ensure safe handling and transit of all battery shipments.
  • Shipping charges may vary based on location and order size.
  • You will receive tracking information via SMS and email after dispatch.

📦 Packaging & Safety:

  • All batteries are packed with proper insulation to avoid damage during transit.
  • Each shipment is , wherever applicable.

🔁 Returns & Replacement:

  • Batteries are non-returnable once delivered unless damaged or defective.
  • If the product is damaged in transit, raise a complaint within of delivery.

📦 What’s in the Box

Everything you need for a smooth, fast, and secure installation is included:

🔌 Hybrid Inverter Package (24V 3.3kW)

  • Hybrid Inverter – 24V 3.3kW (Main unit for solar, battery & grid integration)
  • Wall-Mount Hanger – Sturdy support for safe inverter installation
  • Wi-Fi Dongle – For mobile app & remote monitoring connectivity
  • User Manual – Complete guide for setup and operation

🔋 Wall-Mount Battery Package (25.6V 100Ah)

  • CTG EYIL Wall Mount Battery Module – Preassembled, plug-and-play unit
  • Wall-Mount Hanger & Mounting Hardware – Secure and space-saving installation
  • Power Connecting Cable – Safe and efficient energy transfer
  • RS485 Communication Cable – Enables data exchange between battery & inverter
  • User Manual – Instructions for installation, usage, and safety
